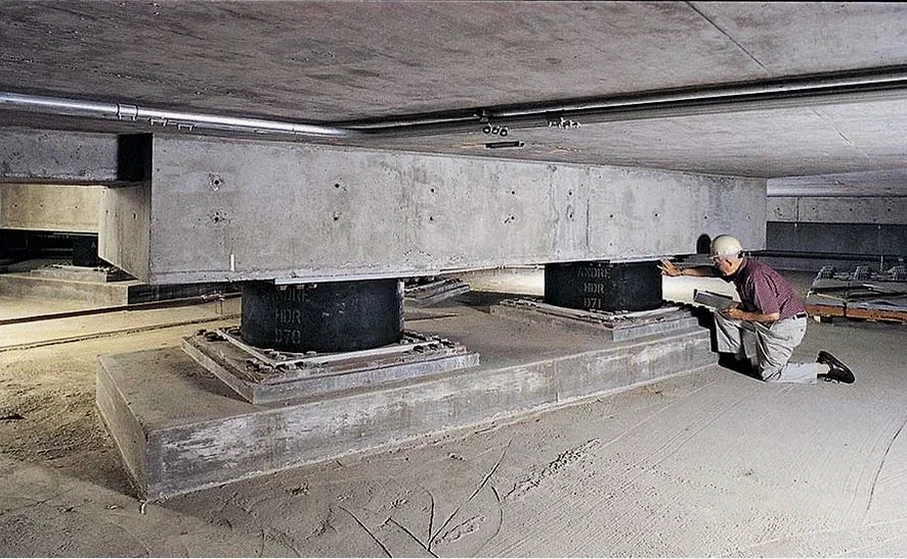

Arlington sits on the edge of the Fort Worth Basin, where the Eagle Ford Shale meets layers of expansive clay that swell and shrink with every Texas drought-and-deluge cycle. That movement wreaks havoc on conventional foundations, but it is the combination of soil instability and low-to-moderate seismicity that makes base isolation seismic design a practical choice here—not just for hospitals, but for any facility that cannot afford downtime. The isolators decouple the structure from ground motion, letting the building ride out an earthquake while the soil does what it wants underneath. State Highway 360 and I-30 put Arlington in a logistics corridor where critical infrastructure demands resilience, and integrating isolator parameters with site-specific geotech data from in-situ permeability testing ensures the system works with the local drainage reality, not against it.
An isolator period tuned to the wrong shear-wave velocity profile amplifies motion instead of reducing it—site-specific geophysics is non-negotiable.
Methodology and scope
The most common mistake in the DFW area is treating isolators as plug-and-play devices. Engineers pull a catalog number and bolt it on, but Arlington’s subsurface does not read catalogs. The upper clay can lose half its bearing capacity after a wet spring, and the underlying shale weathers into a slick, low-friction interface if water gets trapped. A proper design sequence starts with characterizing the site down to at least 30 meters, mapping the shear-wave velocity profile, and then tuning the isolator period to stay well clear of the site’s fundamental frequency. Lead-rubber bearings and friction pendulum systems each behave differently on soft clay versus stiff shale, and the choice ripples into superstructure detailing, utility connections, and the moat wall design. Arlington’s adoption of IBC Chapter 17 special inspection requirements means the testing protocol gets scrutinized, so prototype testing, production testing, and long-term aging projections need to be baked into the specification from day one.
Quick answers
What does base isolation seismic design cost for an Arlington commercial building?
For a mid-size commercial structure in Arlington, the engineering design and testing specification package typically falls between US$4,740 and US$9,470 depending on the number of isolators, the complexity of the soil profile, and how much prototype testing is required. This range covers the geotechnical-seismic integration, isolator parameter studies, and the test protocol documentation needed for IBC special inspection submittal.
Is base isolation worth it for a seismic design category B site in Texas?
It depends on what the building contains, not just the seismic hazard. Arlington has hospitals, data centers, and emergency operations facilities that justify isolation on functional recovery grounds even in category B. If the structure must remain operational after a 475-year event and the soil report shows soft clay amplification, the cost-benefit shifts in favor of isolation compared to conventional strengthening.
How do Arlington's expansive clays affect isolator performance?
Expansive clays can change the elevation of the isolation plane seasonally and, if they swell against the moat wall, can inadvertently lock the isolated structure to the surrounding soil. The design must include a compressible backfill zone, solid drainage, and enough vertical travel in the isolators to tolerate heave without binding. Our field team measures swell pressure and moisture variation curves directly from Shelby tube samples taken on site.
