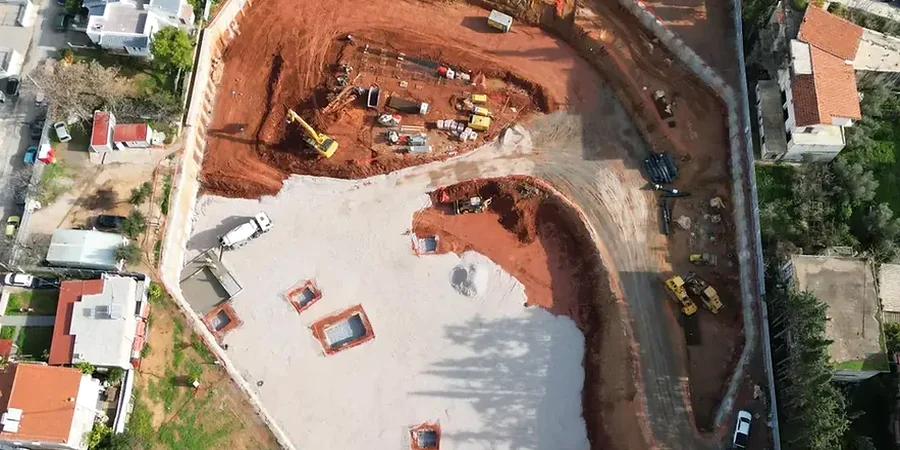

Geotechnical Design of Deep Excavations in Arlington, Texas

The International Building Code (IBC) mandates comprehensive geotechnical investigation for any excavation exceeding 20 feet in depth, yet the specific subsurface conditions in Arlington add layers of complexity that generic designs overlook. The city sits on the Woodbine Formation and Eagle Ford Shale, where highly plastic clays with liquid limits exceeding 50% react aggressively to seasonal moisture changes, and interbedded sandstone layers demand careful shoring sequencing. Our team applies finite element modeling calibrated with in-situ permeability tests to predict groundwater inflow during excavation, while excavation monitoring programs track real-time lateral deformations against predicted values. Arlington’s rapid growth along the I-30 corridor has pushed deep excavation projects into areas where alluvial terrace deposits mask unpredictable bedrock profiles, and the Texas Department of Transportation reports more than 15 major shoring projects annually within the city limits alone.

A 30-foot excavation in Arlington’s Eagle Ford Shale can behave like rock in August and like a slurry by October if groundwater control is not designed for the seasonal high.

Methodology and scope

The geotechnical contrast between North Arlington’s residuum soils near River Legacy Park and the southern sectors around Mansfield Highway illustrates the design challenge. North of I-30, excavations encounter stiff, overconsolidated clays with undrained shear strengths above 2,000 psf that stand nearly vertical for days, but the same material slakes rapidly when exposed to summer thunderstorms that deliver 3 inches of rain in under two hours. South Arlington, in contrast, presents weathered shale that transitions from rock-like behavior to soil-like degradation across a single excavation face, and the design must accommodate both conditions simultaneously. Our approach integrates pressuremeter testing to derive in-situ modulus values rather than relying solely on SPT correlations, which tend to overestimate stiffness in desiccated crust zones. When excavations extend below the water table, we design dewatering systems using vacuum-assisted wellpoints and complement the subsurface model with CPT testing to identify thin sand seams that act as preferential flow paths and can destabilize the base if undetected—a lesson learned from a 2018 excavation failure near AT&T Stadium where an unanticipated 4-inch sand lens triggered a bottom heave event.

Local geotechnical context

Arlington’s annual rainfall of 38 inches concentrates heavily in spring and fall storm events, and the 100-year 24-hour precipitation depth of 9.2 inches means excavations can receive half their monthly average in a single afternoon. The real risk is not just flooding but rapid saturation of the exposed shale face, which reduces the shear strength by up to 40% within 48 hours and can trigger progressive sloughing that undermines adjacent pavement or utilities. In the Entertainment District, where deep excavations for parking structures occur within 15 feet of active roadways, the Texas Board of Professional Engineers requires a peer review for any shoring system exceeding 25 feet—and we have seen designs rejected because they used generic Atterberg limits from county soil surveys rather than site-specific consolidated-undrained triaxial data. Our risk mitigation protocols include pre-construction condition surveys extending 100 feet beyond the excavation perimeter, groundwater observation wells installed 30 days prior to breaking ground, and contingency plans that pre-authorize emergency grouting if inclinometer readings exceed 0.5 inches of cumulative deflection.

Typical values

Parameter	Typical value
Maximum excavation depth analyzed	Up to 120 ft (with staged bracing)
Lateral earth pressure model	FHWA apparent pressure diagrams, modified for stiff clay
Groundwater control method	Deep well + vacuum-assisted wellpoint systems
Wall type in shale	Soldier pile with shotcrete lagging or secant piles
Monitoring frequency (active phase)	Daily inclinometer readings, hourly during storms
Factor of safety (basal heave)	≥ 1.5 per FHWA-NHI-05-042
Seismic design acceleration (Ss)	0.12g (ASCE 7-22, Arlington site class D)

Complementary services

Shoring and Bracing Design Analysis

Complete structural-geotechnical design of soldier pile, secant pile, and diaphragm wall systems using PLAXIS 3D and RIDO software. Includes staged excavation modeling, strut preloading schedules, and embedment depth calculations verified against FHWA apparent pressure envelopes modified for Texas stiff clays.

Dewatering and Groundwater Control Plan

Hydrogeologic characterization using packer testing and multi-well pumping tests to design dewatering arrays that maintain drawdown 3 feet below the deepest excavation level. Plans comply with TCEQ discharge permit requirements and include backup generator sizing for critical infrastructure projects.

Construction-Phase Monitoring and Peer Review

Independent instrumentation program with automated inclinometers, piezometers, and total station survey points, plus weekly engineering review reports comparing field deformations against threshold values. Peer review documentation prepared for City of Arlington building permit submittals on excavations over 25 feet.

Relevant standards

IBC 2021 (International Building Code, Chapter 18), ASCE 7-22 (Minimum Design Loads, Section 12.13), FHWA-NHI-05-042 (Geotechnical Circular No. 4, Ground Anchors and Anchored Systems), ASTM D7181 (Consolidated Undrained Triaxial Compression Test for Cohesive Soils), OSHA 29 CFR 1926 Subpart P (Excavation Safety Standards)

Quick answers

What is the typical cost range for a geotechnical design package for a deep excavation in Arlington?

For a typical commercial excavation between 25 and 50 feet deep, the complete geotechnical design package—including subsurface exploration, laboratory testing, shoring design, dewatering plan, and construction monitoring specifications—ranges from US$2,240 to US$7,160 depending on the number of borings required and the complexity of the groundwater conditions encountered on site.

Which laboratory tests are essential before designing a shoring system in Arlington’s Eagle Ford Shale?

At minimum, the program must include consolidated-undrained triaxial tests (ASTM D7181) at multiple depths to capture the strength envelope across weathered and unweathered shale, Atterberg limits to determine the plasticity index and potential swell behavior, and unconfined compression tests on rock core samples where the shale transitions to higher strength. We also run slake durability tests because Arlington’s shale degrades severely when exposed to wet-dry cycles, and this directly affects the lagging design between soldier piles.

How far in advance should we engage a geotechnical engineer for a deep excavation project in Arlington?

Ideally, geotechnical investigation should begin 8 to 12 weeks before the planned excavation start date. This window allows for drilling and sampling across multiple boring locations, a 28-day curing period for any laboratory permeability tests, and sufficient time for the City of Arlington plan review process, which typically takes 3 to 4 weeks for shoring submittals. Rushing the investigation often results in conservative designs that add 15-20% to the shoring cost because the engineer must assume worst-case parameters where site-specific data is missing.
