Arlington sits on the Trinity River floodplain, where shallow soils often consist of soft alluvial clays and silty sands. We see it frequently: bearing capacities below 50 kPa and high water tables that complicate conventional shallow foundations. Stone columns offer a proven solution, densifying the ground and accelerating drainage. Our engineers design every stone column layout to match Arlington's specific stratigraphy, using CPT data and SPT boreholes to calibrate column spacing and diameter. Before any design, we run an ensayo SPT at multiple depths to confirm N-values and identify soft layers. This data drives the replacement ratio calculation. The result is a ground improvement system that reduces settlement risk and boosts bearing capacity without deep piles.
Stone columns accelerate consolidation in Arlington's saturated clays, cutting settlement time from years to months while boosting bearing capacity by 200-300%.
Methodology and scope
Arlington's subtropical humidity and frequent heavy rains saturate the upper soil profile year-round. Stone columns act as vertical drains, shortening consolidation time from years to months. We combine column design with vibrocompactacion when granular layers are present, achieving relative densities above 70% in loose sands. Our approach includes:
Site investigation with CPT and SPT to map soil variability across the lot
Column layout optimization using Priebe's method and finite element verification
Drainage design for the high water table typical near Lake Arlington and the Trinity River
Quality control with PDA testing and load tests on trial columns
Every design follows ASTM D1586 for SPT and ASTM D2487 for soil classification, ensuring repeatable results. We also cross-check with local geotechnical reports from the City of Arlington's public records to account for fill zones and buried channels.

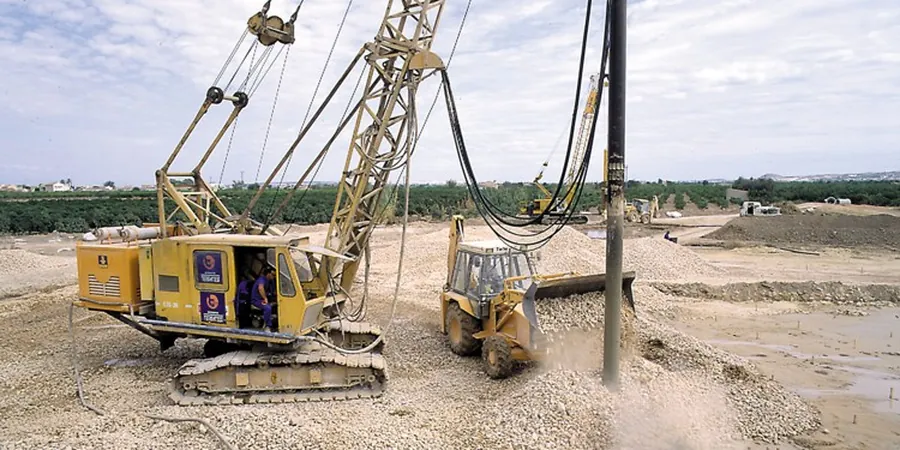

Technical reference image — Arlington
Local considerations
ASCE 7-16 minimum design loads require liquefaction assessment for Arlington's Seismic Design Category B. The Trinity River alluvium is susceptible to cyclic softening under moderate shaking. Stone columns mitigate this risk by densifying loose sands and providing drainage paths that dissipate excess pore pressure. Without proper stone column design, differential settlement after an earthquake can crack slabs and tilt structures. We always run liquefaction triggering analysis using Youd-Idriss (2001) criteria before finalizing column spacing. The IBC 2021 also mandates ground improvement verification through field testing — we provide that documentation for permit approval.
What is the typical cost range for stone column design in Arlington?
For a standard commercial lot (2,000–5,000 m²), the design cost ranges from US$1,380 to US$4,520. This includes site investigation, analysis, and a stamped design report. Larger projects with complex stratigraphy fall at the upper end.
How deep do stone columns need to be in Arlington's alluvial soils?
Column depth depends on the load and soil profile. Typically, we terminate columns in dense sand or stiff clay layers found between 6 and 12 m depth. The Trinity River alluvium often requires columns to extend through soft Holocene clays into Pleistocene terrace deposits.
Can stone columns be used for liquefaction mitigation in Arlington?
Yes. Stone columns densify loose granular soils and provide drainage to relieve excess pore pressure. We analyze liquefaction potential using NCEER SPT-based methods. For Arlington's Seismic Design Category B, columns spaced at 2.0–2.5 m typically reduce cyclic softening risk to an acceptable level.
Location and service area
We serve projects across Arlington and its metropolitan area.
