I was on a site off Columbia Pike a few months ago where a developer was planning a 5-story apartment building on a former parking lot that had been filled with miscellaneous debris and loose soil. The geotechnical challenge was immediate: how do you design foundations on fill when the material beneath is not natural ground? That's where foundations on fill analysis becomes non-negotiable. We start by drilling test pits and performing calicatas exploratorias to log the fill composition and thickness, then run SPT and plate load tests to quantify the actual bearing capacity. Without this step, you're guessing, and in Arlington's variable fill conditions that can lead to differential settlement issues down the road.
Fill thickness in Arlington varies from 5 to 30 ft. Without proper analysis, post-construction settlement can exceed 2 inches within the first year.
Methodology and scope
Arlington sits on a terrace deposit of sand and gravel over clay, but the fill zones — especially near Rosslyn and Ballston — consist of random construction debris, old asphalt, and imported soils from metro excavation. For foundations on fill analysis we measure compressibility via consolidation tests on undisturbed samples and compare with SPT N-values. The typical fill in Arlington ranges 5 to 30 ft deep with N-values as low as 4 blows/ft in loose zones. We also run ensayo de corte directo on remolded samples to estimate the shear strength at the interface between fill and natural soil, critical for retaining walls or shallow footings. The goal is to define whether the fill can support a shallow foundation after compaction or if deep foundations are mandatory.

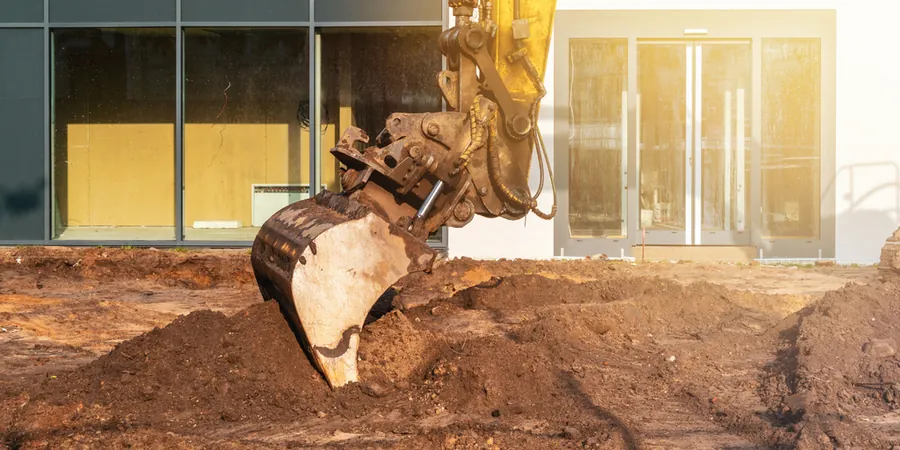

Technical reference image — Arlington
Local considerations
The difference between building on natural soil in Arlington's Crystal City versus building on fill near the I-395 corridor is night and day. In newer fill areas near Potomac Yard, we've seen organic matter trapped under pavement that creates pockets of ongoing settlement years after construction. Foundations on fill analysis catches these risks early. We map the fill boundary with SPT borings and sometimes GPR to detect voids. The real danger is assuming the fill is uniform — it never is. One spot might be compacted rubble, another just loose sand. Our approach is to test every 50 ft of foundation line to avoid surprises.
Boreholes with SPT at 5-ft intervals to log fill type, thickness, and N-values. We classify soil per ASTM D2487 and identify problematic zones like debris pockets or organic layers. Results feed directly into bearing capacity and settlement calculations.
02
Plate Load Testing on Fill
In-situ plate load tests (ASTM D1196) to measure the actual modulus of subgrade reaction of compacted fill. This is the most reliable way to confirm bearing capacity before pouring footings. We test at 3 to 5 locations per building footprint.
03
Consolidation & Settlement Analysis
Oedometer tests on undisturbed fill samples to determine compression index, preconsolidation stress, and time rate of settlement. We model total and differential settlement under design loads and recommend preloading or surcharge if needed.
Applicable standards
ASCE 7-22 (Minimum Design Loads, including fill surcharge), IBC 2021 Section 1803 (Geotechnical Investigation for Fill), ASTM D1586-18 (Standard Test Method for SPT), ASTM D2435-04 (Standard Test Methods for One-Dimensional Consolidation of Soils)
Frequently asked questions
How do you know if the fill in Arlington is suitable for shallow foundations?
We run a combination of SPT borings, plate load tests, and consolidation tests. If the fill is well-compacted, granular, and less than 10 ft deep, shallow footings may work with a bearing capacity of 2-4 ksf. But if the fill is loose, organic, or thicker than 15 ft, deep foundations or ground improvement are usually required.
What is the typical cost for a foundations on fill analysis in Arlington?
For a typical residential or small commercial project in Arlington, expect to pay between $880 and $2,300 depending on the number of borings, lab tests, and site access. Larger projects with multiple fill zones can run higher. The investment is small compared to the cost of fixing settlement damage later.
How long does the analysis take and when do I get results?
Field work usually takes 1-2 days depending on access. Lab testing for consolidation takes 2-3 weeks because the samples must be saturated and loaded incrementally. We provide a preliminary report with SPT results within 5 business days, and the full analysis within 4 weeks.
Can you test fill that has been in place for decades?
Yes, older fill can be tested just like new fill. The key difference is that old fill may have already undergone some settlement, so we focus on residual settlement potential. We run consolidation tests and check for organic decomposition. If the fill is stable and well-compacted, we can often recommend shallow foundations with a higher allowable bearing pressure.
