Arlington sits on a mix of river-deposited sands and clays left by the Potomac floodplain, with a water table that can sit just 3 to 5 meters deep near the W&OD trail corridor. That shallow groundwater often weakens cohesionless soils, so a Standard Penetration Test in Arlington must account for saturation effects on blow counts. We use automatic trip hammers and calibrated rods to get reliable N-values even in wet sands, and we record energy efficiency per ASTM D4633. Before we start, we check access restrictions set by the county, especially near protected streams or historic districts like the Fairlington area. The data feeds directly into bearing capacity calculations and liquefaction screening, which matters because Arlington is in Seismic Zone A with a peak ground acceleration of 0.15g. A proper SPT program here often pairs with our cimentaciones superficiales analysis to size shallow footings correctly.
In Arlington's high-water-table environment, uncorrected blow counts can overestimate density by 30 percent — correct for saturation.
Methodology and scope
We follow ASTM D1586-18 strictly, with split-barrel sampling every 1.5 meters and continuous logging of soil types. In Arlington, the standard 2-inch split spoon often encounters gravel lenses left by glacial outwash, so we carry heavy-wall liners to prevent sample disturbance. Key parameters we record include N-value corrected for overburden (N60), hammer energy efficiency, and fines content from recovered samples. To interpret behavior in fine-grained soils of the Marine Clay terrace, we always run limites-atterberg on recovered material. For projects requiring continuous profiling through soft layers, we supplement with ensayo-cpt to capture shear strength variations at finer resolution. Our technicians log every refusal in terms of rod friction and groundwater conditions, which is critical for designing dewatering systems in Arlington's basements.

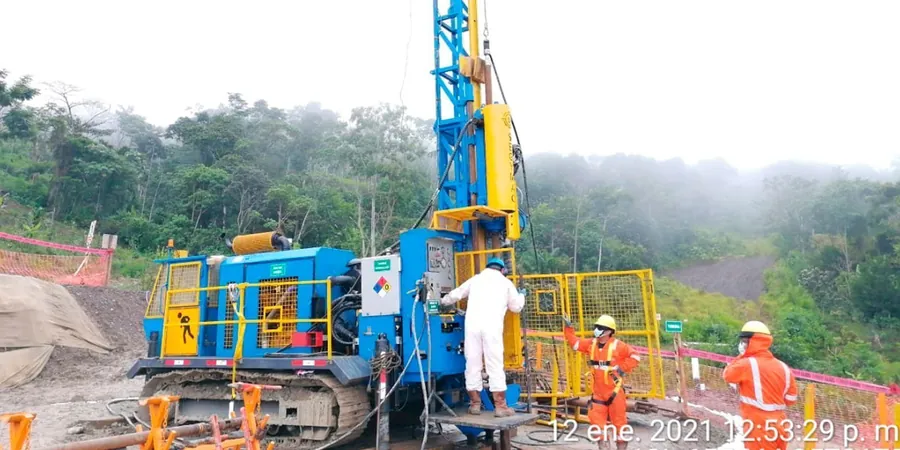

Technical reference image — Arlington
Local considerations
The biggest risk we see in Arlington is underestimating the effect of perched water tables in the Columbia Formation sands. A saturated sand can show N-values of 15 but actually behave like loose material under cyclic loading. We've had cases near the Ballston corridor where a developer assumed medium-dense conditions at 8 meters, but the SPT blow counts dropped by half after correcting for pore pressure. That mismatch led to differential settlement in a five-story structure. Our practice is to run dissipation tests when the water table rises within the borehole, and to flag any strata where N1,60 falls below 10 — those zones need deeper foundation support or ground improvement. A thorough SPT program here also helps identify old fill zones from the 1960s that can mask competent soil.
Full penetration test at 1.5 m intervals with split-barrel recovery, logging of N60, N1,60, and soil classification per ASTM D2487. Includes groundwater monitoring and refusal identification. Best for residential and low-rise commercial.
02
SPT with Seismic Site Class Determination
Extended SPT program combined with shear-wave velocity correlation to assign NEHRP site class (A through F). Includes liquefaction screening per NCEER method and settlement analysis. Required for IBC Seismic Design Category B and above in Arlington.
How much does a Standard Penetration Test cost in Arlington?
Typical cost ranges between US$540 and US$870 per borehole, depending on depth and access conditions. For a standard 10-meter hole with sampling every 1.5 meters, expect around $680. Volume discounts apply for multiple boreholes on the same site.
What is the difference between N-value and N60?
The raw blow count (N-value) is measured in the field. N60 corrects that value to a 60% hammer energy efficiency standard, which makes it comparable across different rigs and operators. In Arlington, automatic hammers typically deliver 75–85% efficiency, so the correction can be significant — often 10–15% lower than raw N.
At what depth should I stop the SPT in Arlington?
We typically stop when we reach competent bearing stratum with N60 > 30 over a 3-meter interval, or when refusal is met (over 50 blows per 300 mm). In the Rosslyn area, that can be at 5–8 meters in the Potomac Group sands; near Crystal City, it may go to 12–15 meters in the Marine Clay.
Can SPT detect liquefaction risk in Arlington?
Yes, SPT is the primary method for liquefaction screening per NCEER guidelines. We compare N1,60 values against cyclic stress ratios from the design earthquake. In Arlington, with PGA = 0.15g, we flag any clean sand layer (fines < 15%) with N1,60 < 20 as potentially liquefiable. Those zones are then checked with the Youd-Idriss 2001 method.
