Arlington sits on the Coastal Plain with the Potomac River to its north, where Quaternary terrace deposits and Cretaceous sediments create variable bearing conditions. For any road embankment design, the fill thickness can reach 10 to 15 m near I-395 interchanges, and the underlying clay layers often exhibit low undrained shear strength. Before we specify compaction parameters, we run a placa de carga to verify the subgrade modulus directly on site, and we correlate those results with the ensayo SPT blow counts to confirm the bearing layer depth. This sequence ensures the fill self-weight does not trigger differential settlements in the soft Potomac Group clays that underlie most of Arlington's corridor.
The typical target in Arlington is 95 percent of maximum dry density for lower lifts and 98 percent for the top 1.5 m.
Methodology and scope
We use a 25-ton vibratory roller with integrated continuous compaction control (CCC) logging, which is essential for Arlington's projects where the borrow material comes from local terrace sand and gravel mixed with silty fines. The CCC system registers stiffness every 0.3 m of lift, and we cross-check that data with densidad cono de arena tests at a frequency of one per 500 m² per lift. Our laboratory then runs standard Proctor (ASTM D698) on each material batch to define the optimum moisture content. The typical target in Arlington is 95 percent of maximum dry density for the lower lifts and 98 percent for the top 1.5 m to protect against freeze-thaw cycles common in northern Virginia winters.

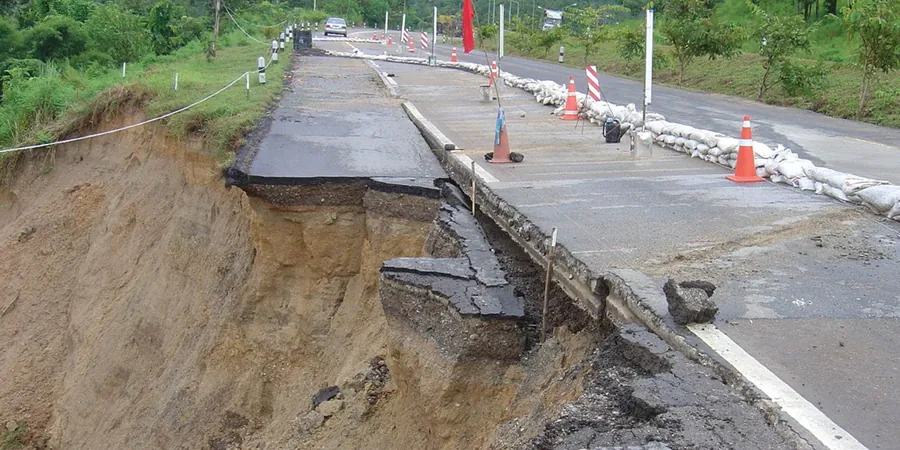

Technical reference image — Arlington
Local considerations
In Arlington, many sites were originally tidal flats or stream valleys backfilled with uncontrolled debris before the 1970s. When we design a road embankment on these historical fills, the risk of a deep-seated rotational failure through the old organic layer is real. We have seen cases where a 6 m high fill triggered a creep movement that cracked the pavement within two years. That is why we always install inclinometers and settlement plates at the toe and crest during construction, and we keep monitoring for at least six months after the last lift is placed. The local geology does not forgive shortcuts.
We run limit-equilibrium models (Bishop simplified and Spencer) for both static and pseudo-static seismic conditions using the ASCE 7 ground motion parameters for Arlington. The analysis includes the soft clay layers below the fill.
02
Compaction Control & Quality Assurance
Our field technicians perform in-situ density tests (sand cone and nuclear gauge) and coordinate with the roller operator to adjust moisture and passes in real time. All results are reported with IBC-compliant documentation.
03
Foundation Soil Improvement Recommendations
If the subgrade shear strength is below 25 kPa, we design a staged construction sequence with wick drains or a lightweight fill solution such as expanded polystyrene (EPS) geofoam blocks to control settlement.
Applicable standards
IBC 2021 (Chapter 18 – Soils and Foundations), ASTM D698-12 (Standard Proctor), ASTM D1586-18 (SPT), FHWA-NHI-05-037 (Embankment Construction Guidelines)
Frequently asked questions
What is the typical cost of a road embankment design study in Arlington?
For a project with one to two embankments up to 10 m high, the geotechnical study including field borings, laboratory tests, stability analysis, and a design report ranges between US$1,450 and US$3,670. The final price depends on the number of borings and the complexity of the foundation soils.
How deep should the geotechnical borings be for an embankment in Arlington?
We drill at least to a depth equal to twice the embankment height or until we reach a competent bearing layer with SPT N-values above 30 blows/ft. For a 10 m high fill, that means borings to 20 m depth, which in Arlington often penetrates through the terrace deposits into the Cretaceous Potomac Group sands.
Do I need a seismic slope stability check for embankments in Arlington?
Yes. Under IBC 2021 and ASCE 7-16, Arlington falls into Seismic Design Category B or C depending on the site class. For embankments higher than 6 m, we compute the seismic coefficient using the maximum considered earthquake (MCE) spectral acceleration and verify that the factor of safety under seismic loading is at least 1.1.
What laboratory tests are required for embankment fill materials?
We require Standard Proctor compaction (ASTM D698) to define optimum moisture and maximum dry density, grain size distribution (ASTM D6913) for drainage classification, and Atterberg limits (ASTM D4318) on the fines fraction to check for plasticity that could cause volume changes after compaction.
