Arlington sits on the eastern edge of the Fort Worth Prairie, where Cretaceous limestone and shale transition into Quaternary alluvial deposits along the Trinity River. This geological boundary produces abrupt changes in soil stiffness within a single building lot. A seismic amplification analysis in Arlington accounts for these contrasts by measuring shear wave velocity profiles and classifying site conditions per ASCE 7. Without that data, a structure on stiff clay may behave very differently than one on loose sand 50 meters away. The analysis identifies how the local stratigraphy will modify ground motion, which directly influences design spectra for any new construction or retrofit.
A soil profile that shifts from stiff clay to loose sand within 30 meters can double the spectral acceleration at a structure's natural frequency.
Methodology and scope
The city expanded rapidly after the 1960s, with large subdivisions built over floodplains without detailed subsurface characterization. That legacy means many existing sites lack a baseline seismic response model. Our approach starts with MASW or ReMi surveys to map shear wave velocity down to 30 meters, then correlates results with borehole logs from nearby projects. We classify each profile into ASCE 7 site classes A through F and compute amplification factors using the NEHRP provisions. When the soil profile is complex, we run one-dimensional SHAKE analyses to capture resonance frequencies. Complementing this, we often perform a seismic response analysis to assess layer interaction, and we integrate instrumentation geotecnica for long-term monitoring of sensitive structures.

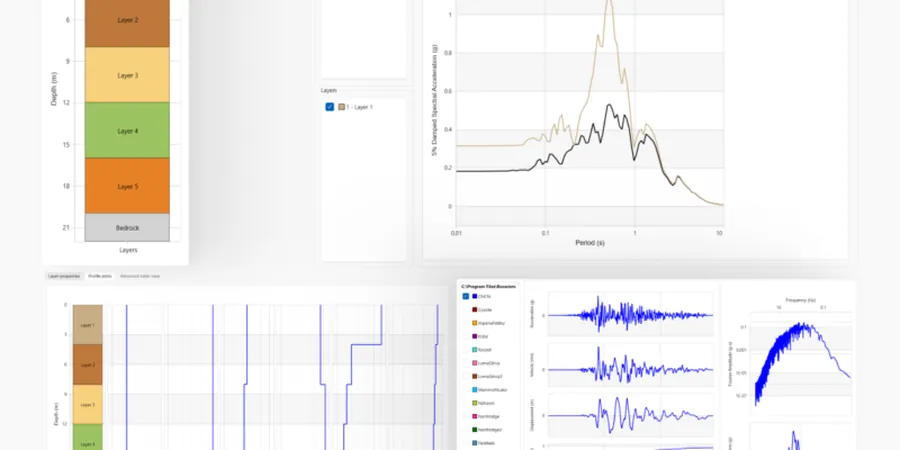

Technical reference image — Arlington
Local considerations
A common mistake among Arlington developers is assuming one-size-fits-all seismic coefficients from the IBC maps without site-specific verification. The code maps provide generic values for the zip code, but a site underlain by deep alluvial sands can amplify motion 2.5 times more than the adjacent limestone ridge. Relying on default coefficients may lead to under-designed foundations in softer zones, or unnecessary over-design in stiffer areas. A seismic amplification analysis in Arlington corrects that by producing a custom response spectrum tied to the actual soil profile, saving both safety margin and construction cost.
Non-invasive surface wave surveys to determine Vs30 profiles across the site. Suitable for large subdivisions or single lots where borehole access is limited. Data is processed to produce 1D and 2D velocity models.
02
Site-Specific Response Spectrum Development
Using shear wave velocity data and strain-compatible soil properties, we compute acceleration response spectra per ASCE 7 and IBC. Includes sensitivity analysis for medium and rare earthquake events.
What is the difference between site class and actual amplification?
Site class (A through F) is a simplified category based on average Vs30. Actual amplification depends on the full soil column, including layer thickness, impedance contrast, and strain-dependent damping. Two sites with the same site class can have significantly different amplification factors, which is why a direct analysis is recommended.
How much does a seismic amplification analysis cost in Arlington?
The typical cost for a site-specific analysis ranges between US$1,060 and US$1,940, depending on the number of MASW lines, depth of investigation, and whether a response spectrum is required. Larger projects with multiple test lines fall at the higher end.
Does Arlington have high seismic risk?
Arlington is in IBC Seismic Design Category B (moderate), with PGA values around 0.10–0.15 g. The main concern is not the magnitude of ground motion but the local amplification caused by deep alluvial deposits. A site near the Trinity River can experience motion 2–3 times stronger than a site on limestone just a kilometer away.
Location and service area
We serve projects across Arlington and its metropolitan area.
