Arlington sits on deep alluvial deposits from the Trinity River, with the Eagle Ford Shale formation underlying much of the city. These clay-dominated soils, often highly plastic and prone to volume changes with moisture, create specific challenges for seismic foundation design. The North Texas region falls within IBC Seismic Design Category C, meaning peak ground accelerations of 0.2g to 0.3g are expected. A proper geotechnical investigation must evaluate site class based on VS30 measurements, since many Arlington sites fall into Class D (stiff soil) or Class E (soft soil), which can amplify ground motion significantly compared to bedrock sites.
Arlington's deep clay soils can amplify seismic waves up to 2.5 times compared to rock, making site-specific response analysis non-negotiable for safe foundation design.
Methodology and scope
Fieldwork for seismic foundation design in Arlington typically begins with soil borings using hollow-stem auger rigs reaching depths of 30 to 60 meters. The team collects undisturbed Shelby tube samples for cyclic triaxial testing and disturbed samples for index properties. Before lab work begins, we cross-reference the soil profile with nearby USGS shear-wave velocity data. This is combined with a georadar survey to detect buried channels or loose zones that could amplify shaking. The final design parameters include the site-adjusted spectral acceleration values (SDS and SD1) per ASCE 7-22 Chapter 11, which directly feed into the structural engineer's model. For critical facilities, we also recommend amplification analysis to evaluate potential resonance between the building and the ground.

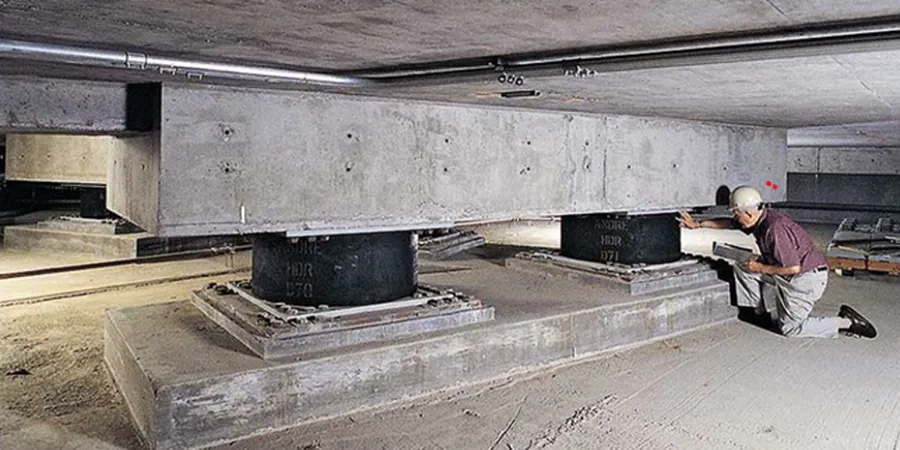

Technical reference image — Arlington
Local considerations
Arlington's climate delivers both prolonged droughts and sudden heavy rain, a pattern that causes cyclic shrinkage and swelling of the expansive clay soils. During an earthquake, this cracked and desiccated clay layer loses cohesion rapidly, increasing the risk of differential settlement beneath shallow foundations. Additionally, the water table fluctuates seasonally between 6 and 20 feet, which can saturate loose sand lenses and trigger localized liquefaction even at moderate ground accelerations. Seismic foundation design here must account for these dynamic soil conditions, not just peak ground motion.
We develop custom response spectra using VS30 measurements from MASW or downhole methods, combined with geotechnical boring logs. The analysis follows ASCE 7-22 Chapter 21 procedures, producing SDS and SD1 values that replace code-default maps. This is critical for Arlington sites where the default IBC site class may be too conservative or, in some cases, unconservative for soft soil conditions. The deliverable includes spectral acceleration curves at 5% damping for periods from 0.01 to 10 seconds.
02
Liquefaction and Cyclic Softening Assessment
For Arlington projects with deep foundations or critical infrastructure, we evaluate liquefaction triggering using the NCEER/Youd-Idriss 2001 methodology. SPT blow counts, fines content, and cyclic stress ratios are compared against the magnitude-scaled CSR from the design earthquake. The output includes a Liquefaction Severity Index map and recommended mitigation measures such as stone columns or deep soil mixing for high-risk zones near the Trinity River floodplain.
How much does a seismic foundation design study cost in Arlington?
For a standard commercial project in Arlington, the geotechnical investigation portion — including borings, lab testing, and seismic analysis — typically ranges between US$1,330 and US$4,770. This varies based on the number of borings, depth of investigation, and whether a site-specific response spectrum is required. A full liquefaction assessment adds to the scope but remains within that range for most mid-rise buildings.
What distinguishes a Site Class D from a Site Class E in Arlington's soil?
Site Class D (stiff soil) has an average shear-wave velocity of 180 to 360 m/s in the top 30 meters, typical of Arlington's deeper clay layers with moderate density. Site Class E (soft soil) is below 180 m/s, often encountered near the Trinity River where very soft clays and silts extend deeper than 15 meters. The class directly affects the amplified spectral accelerations — Class E can double the base shear demand compared to Class D for the same building.
Do I need a seismic foundation design for a single-family home in Arlington?
For most single-family homes on shallow foundations, the IBC prescriptive provisions apply if the site is Class D and the PGA is under 0.25g. However, if your lot is near a creek, on a steep slope, or has known soft soil (Class E), a site-specific seismic foundation design is recommended to avoid differential settlement during a moderate earthquake. The city of Arlington follows the 2024 IBC, which requires a geotechnical report for new constructions on expansive soils regardless of seismic category.
