Arlington sits at an elevation of just under 600 feet above sea level, but its position within the highly active Dallas-Fort Worth metroplex means it experiences occasional seismic events from both natural fault lines and induced seismicity linked to local oil and gas operations. The 2015 Irving earthquake sequence, with a magnitude 3.6 event felt across Arlington, reminded developers that even moderate ground motion can be amplified by the deep alluvial soils of the Trinity River floodplain. A proper site response analysis in Arlington is not optional when designing critical structures — it is the tool that translates regional seismic hazard into site-specific design spectra. Our team combines shear wave velocity profiling with nonlinear soil modeling to capture how the local clay and sand layers will actually behave during shaking, ensuring your foundation system is neither overdesigned nor underprepared.
Shear wave velocity profiling combined with site-specific modulus reduction curves is the only way to predict true soil amplification in Arlington's alluvial terraces.
Methodology and scope
The geology beneath Arlington is dominated by the Eagle Ford Shale formation near the surface, overlain by Quaternary alluvial terrace deposits along streams like Village Creek and Johnson Creek. These terrace deposits consist of interbedded silty clays, sands, and gravels that can vary in thickness from a few feet to over 40 feet near the river corridors. For a site response analysis in Arlington, we first perform a downhole seismic survey or MASW array to measure shear wave velocity (Vs30) directly, which is the primary input for ASCE 7 site class assignment. The data feeds into capacity of load analysis when evaluating shallow foundation performance under dynamic loads, and we routinely pair it with SPT testing to correlate blow counts with strain-dependent modulus reduction curves. We also collect undisturbed tube samples for resonant column testing in the laboratory to define the G/Gmax and damping curves specific to Arlington's clay mineralogy, which tends to be high-plasticity CH soils that can lose stiffness rapidly under cyclic loading.

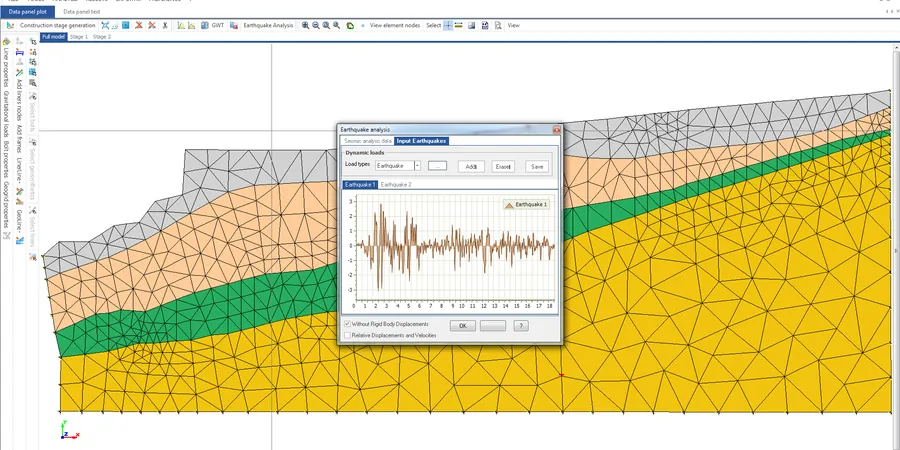

Technical reference image — Arlington
Local considerations
ASCE 7-16 requires all structures in Seismic Design Category B or higher to incorporate site-specific ground motion response analysis when the site class is D, E, or F. Arlington falls under SDC B to C depending on the specific zip code, but the deep soft soil conditions along the I-30 corridor push many parcels into Site Class D territory. Without a proper site response analysis in Arlington, designers default to the conservative general response spectrum, which can increase base shear demands by 25% or more compared to an analysis that accounts for the actual soil column. More critically, ignoring the potential for liquefaction in saturated sandy layers near the Trinity River could lead to bearing capacity failure during a moderate event. Our analysis provides the site-specific acceleration response spectra and liquefaction triggering assessment that IBC 2021 now mandates for essential facilities and risk category III and IV structures.
Full nonlinear time-domain analysis using DEEPSOIL or equivalent linear code, incorporating site-specific Vs30 profiles, modulus reduction curves from resonant column testing, and a suite of 11 spectrum-matched ground motions. Output includes acceleration response spectra at surface and at foundation depth, plus liquefaction triggering evaluation per Youd-Idriss 2001. Ideal for hospitals, schools, and critical infrastructure.
02
Quick Screening & Site Class Assignment
Cost-effective MASW survey combined with two SPT borings to assign ASCE 7 site class and generate a simplified response spectrum. Includes basic amplification factor (Fa and Fv) determination per code tables, with a written report suitable for low-rise commercial buildings and single-family developments where a full nonlinear analysis is not required by the building official.
Applicable standards
ASCE 7-16 (Chapters 11, 19, 21) — Site classification and ground motion procedures, IBC 2021 (Section 1613) — Seismic design requirements for buildings, ASTM D4428/D4428M — Crosshole seismic testing for shear wave velocity, NEHRP Recommended Seismic Provisions (FEMA P-1050) — Site response methodology
Frequently asked questions
What is the difference between a standard geotechnical report and a site response analysis?
A standard geotechnical report provides static soil parameters like bearing capacity and settlement for gravity loads. A site response analysis in Arlington specifically evaluates how the soil column will amplify or deamplify seismic waves during an earthquake. It produces strain-compatible shear modulus and damping values, site-specific response spectra, and liquefaction triggering curves. The two are complementary: you need the static parameters from the geotechnical report to design the foundation, and the site response analysis to verify the foundation performs safely under dynamic loading.
How much does a site response analysis in Arlington typically cost?
For a typical commercial project in Arlington, a full nonlinear site response analysis with field testing, lab work, and reporting ranges between US$1.310 and US$4.120. The variance depends on the number of borings required, the depth of the Vs30 profile, and whether resonant column testing is needed. A simplified screening for site class assignment alone can be completed for the lower end of that range. We provide a fixed-price quote after reviewing the project scope and building code requirements.
Is site response analysis required by the city of Arlington building code?
Arlington adopts the International Building Code 2021 with local amendments. IBC 2021 requires site-specific ground motion procedures for all structures assigned to Seismic Design Category D, E, or F, and for risk category III or IV structures on Site Class E or F soils. Most Arlington sites fall into Site Class D, which does not automatically trigger the requirement, but many structural engineers choose to perform the analysis to reduce conservative amplification factors and optimize reinforcement costs. Check with the Arlington Development Services Department for your specific permit jurisdiction.
What field methods do you use to measure shear wave velocity in Arlington?
We primarily use the Multichannel Analysis of Surface Waves (MASW) method because it is non-invasive, cost-effective, and works well in Arlington's urban environment where drilling access may be limited. For deeper profiles or when higher resolution is needed, we deploy downhole seismic testing in a cased borehole using a three-component geophone array. Both methods conform to ASTM D4428 and provide the Vs30 values required for ASCE 7 site classification. We cross-reference the seismic results with SPT N-values from adjacent borings to validate the soil behavior model.
